পণ্যের বিবরণ
উৎপত্তি স্থল: চীন
পরিচিতিমুলক নাম: E-link
সাক্ষ্যদান: CE, FCC
মডেল নম্বার: LNK-POE200W
নথি: E-link LNK-PSW Series PoE I....0.pdf
পেমেন্ট ও শিপিংয়ের শর্তাবলী
ন্যূনতম চাহিদার পরিমাণ: 1 পিসি
মূল্য: আলোচনাযোগ্য
প্যাকেজিং বিবরণ: শিল্প PoE স্যুইচ স্ট্যান্ডার্ড শক্ত কাগজ প্যাকেজিং
ডেলিভারি সময়: 7-10 কার্যদিবস
পরিশোধের শর্ত: এল/সি, টি/টি, ওয়েস্টার্ন ইউনিয়ন, মানিগ্রাম, পেপাল
যোগানের ক্ষমতা: 100000 পিসি/মাস
অপারেটিং তাপমাত্রা:: |
0 থেকে +40 ° C (32 ° F থেকে 104 ° F) |
আকার (LxWxH):: |
84 × 47 × 31 মিমি |
মামলা: |
ধাতব কেস |
ওজন: |
120 গ্রাম |
আর্দ্রতা: |
সর্বোচ্চ 95% RH (অ ঘনীভূত) |
আউটপুট শক্তি: |
24 ডাব্লু/48 ডাব্লু al চ্ছিক |
অপারেটিং তাপমাত্রা:: |
0 থেকে +40 ° C (32 ° F থেকে 104 ° F) |
আকার (LxWxH):: |
84 × 47 × 31 মিমি |
মামলা: |
ধাতব কেস |
ওজন: |
120 গ্রাম |
আর্দ্রতা: |
সর্বোচ্চ 95% RH (অ ঘনীভূত) |
আউটপুট শক্তি: |
24 ডাব্লু/48 ডাব্লু al চ্ছিক |
Product Advantages
► Compact wall mount design
► No additional power cables required
► Built in protection circuits
► Supports 10/100M or 10/100/1000M LAN environment
► Plug & Play
► No configuration required
► Reduced Installation cost
► Safe and Reliable Power to WLAN Access Points
► Automatic Detection and Protection of Non–standard Ethernet Terminals
Overview

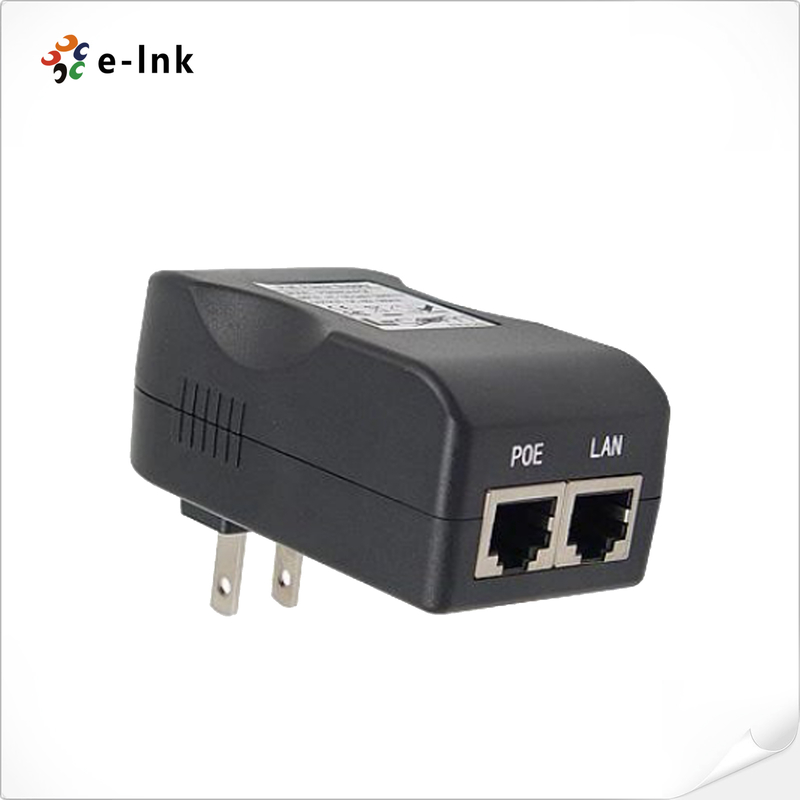

E-link wall mount PoE injector is completely self-contained, a separate power supply and injector is not required. It can be plugged directly into a wall electrical outlet, eliminating the need for additional power cables. The compact size makes it ideal for crowded equipment enclosures.
Technical Indexes
Parameter |
Specifications |
Data Rate |
10/100Mbps 10/100/1000Mbps |
Connectors |
2xRJ45 Jacks |
Input Power |
90-240V AC ,50-60Hz |
Output Voltage |
12V/24V/48V/52V/56VDC optional |
Output Current |
0.5A/0.8A/0.9A/1.0A/2.0A Optional |
Output Power |
24W/48W optional |
Wiring |
|
• Power over spare pairs 4/5(+) and 7/8(-) |
|
LED Display |
YES |
Over Load Protection |
115%-150% of Rated Power |
Operating Temperature |
0 to +40°C (32°F to 104°F) |
Operating Humidity |
Max. 95% RH(non-condensing) |
Dimension (LxWxH) |
84×47×31mm |
Weight |
120g |
Ordering Information
Model |
Decription |
LNK-POE200W |
Wall Mount PoE Injector, 10/100Mbps, IEEE 802.3af 15.4W |
LNK-POE200WT |
Wall Mount PoE Injector, 10/100Mbps, IEEE 802.3at 30W |
LNK-POE300W |
Wall Mount PoE Injector, 10/100/1000Mbps, IEEE 802.3af 15.4W |
LNK-POE300WT |
Wall Mount PoE Injector, 10/100/1000Mbps, IEEE 802.3at 30W |
