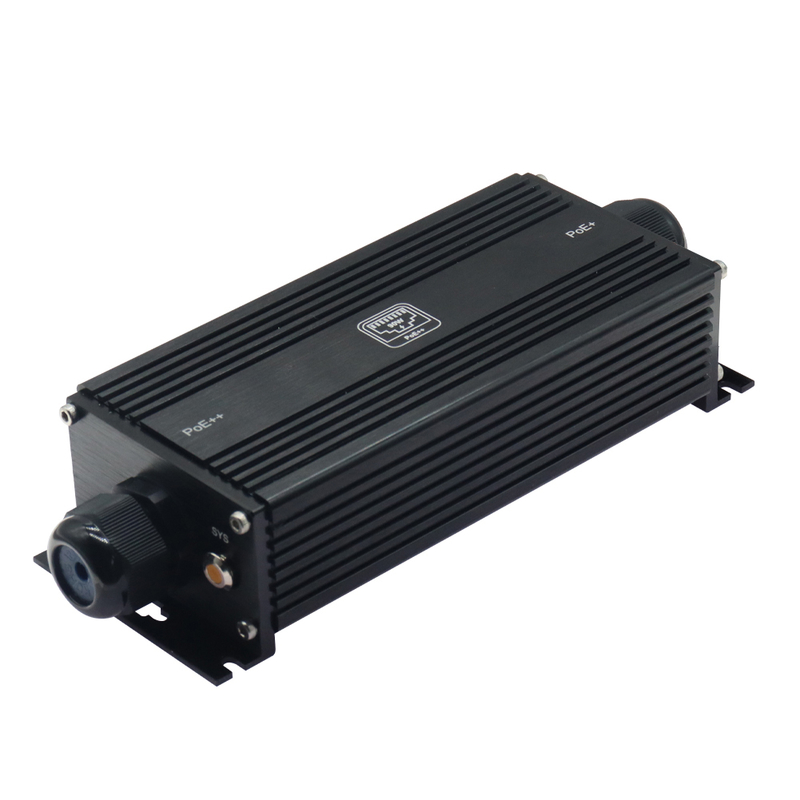

IP67 Waterproof Industrial Gigabit PoE Extender (1 x Input 1 x Output)

Ethernet Port

PoE Input Port

1 x 10/100/1000Base-TX RJ-45, M25 x 1.5 Cable Glands

PoE Output Port

1 x 10/100/1000Base-TX RJ-45, M25 x 1.5 Cable Glands

Cascade Connection

Support 3 grade

Power over Ethernet

PoE Standard

IEEE 802.3af/at/bt

PoE Power Supply Type

Mid-span and End-span

PoE Pin Assignment

1/2(+), 3/6(-), 4/5 (+), 7/8 (-)

Input Voltage

IEEE802.3 bt 90W

PoE Output Power

Maximum 65W

Single Port PoE Output

Maximum 60W

Switch Property

Standards

IEEE 802.3 Ethernet, IEEE 802.3u Fast Ethernet, IEEE 802.3ab Gigabit Ethernet

Forwarding Modes

Store and Forward

Transmission Distance

Each extender extends by 100m, max 3 grade Cascade, total 400m.

MAC Table

2K

Switching Capacity

6Gbps

Packet Forwarding Rate

4.46Mpps

Flow Control

IEEE 802.3x pause frame for full duplex, Back pressure for half duplex

Jumbo Frame

10K bytes

Environment

Surge Immunity

6KV, Standard: IEC

ESD Protection

6kV Contact Discharge; 8kV Air Standard: IEC 61000-4-2

Protection Level

IP 67

Explosion-Proof Rating

IK10

Operating Temperature

-40°C to 80°C (-40°F to 176°F)

Storage Temperature

-40°C to 85°C (-40°F to 185°F)

Operating Humidity

0~95% (non-condensing)

Physical Parameter

Dimensions (WxDxH)

195 x 75 x 46 mm

Weight

0.6 kg

Casing

Aluminum Case

Mounting Options

Wall-mount

Certifications

Certifications

CE, FCC, RoHS
