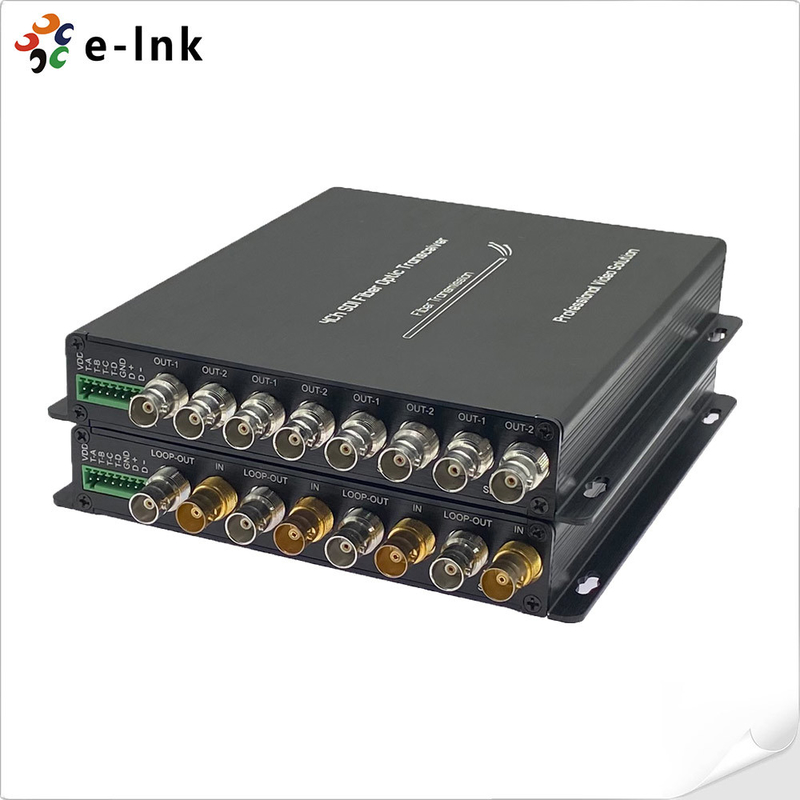

4-Channel 3G-SDI Fiber Converter with RS485 & Tally

SDI Input

SMPTE 424M, SMPTE 292M, SMPTE 259M, DVB-ASI, DVB-SSI and Telecom/Datacom

270Mbit/s - 1.48Gbit/s – 3Gbit/s

Input number: 4

Reflection loss: >15DB

Equilibrium: 0-150m @3Gb/s

Connector: BNC

Optics

Channel: 1

Type: single-mode

Transmission distance: 20km (Other distance Optional)

Reflection loss: > 15dB

Dithering: < 0.2UI

Connector: FC/UPC (SC, LC, ST optional)

SDI Output

Output number:4

Signal level: 800mV nominal

Rise/fall time: 200ps indication

Overshoot: < 10% amplitude

Reflection loss: >15dB

Dithering: < 0.2UI

Connector: 75Ω BNC

Data

1Ch RS-485 (full/half duplex) and support NRZ, RZI and Manchester

Max. 57600bps for RS485

Connector: Industrial standard screw terminal

4Ch Tally: A, B , C, D

Power and environmental indication

Operating temperature: -10℃～＋55℃

Power Input: 1A@12VDC

EMI/RFI: meet FCC Part 15 Class A, EU EMC standard

Average time trouble-free: >100000 hours

SDI video format supports

625/25PAL; 525/29.97NTSC; 525/23.98NTSC; 720p50; 720p59.94;

1080P23.98/24/30/50/60; 1080i 23/24/30/50/59.94;

LNK-HDSDI-4V1D4T

4-Ch HD-SDI Video with Loop output + 1Ch backward RS485 + 4Ch Tally, SM 20km, FC, including 1 transmitter & 1 receiver, used by pairs

LNK-3GSDI-4V1D4T

4-Ch 3G-SDI Video with Loop output + backward RS485 + 4Ch Tally, SM 20km, FC, including 1 transmitter & 1 receiver, used by pairs
