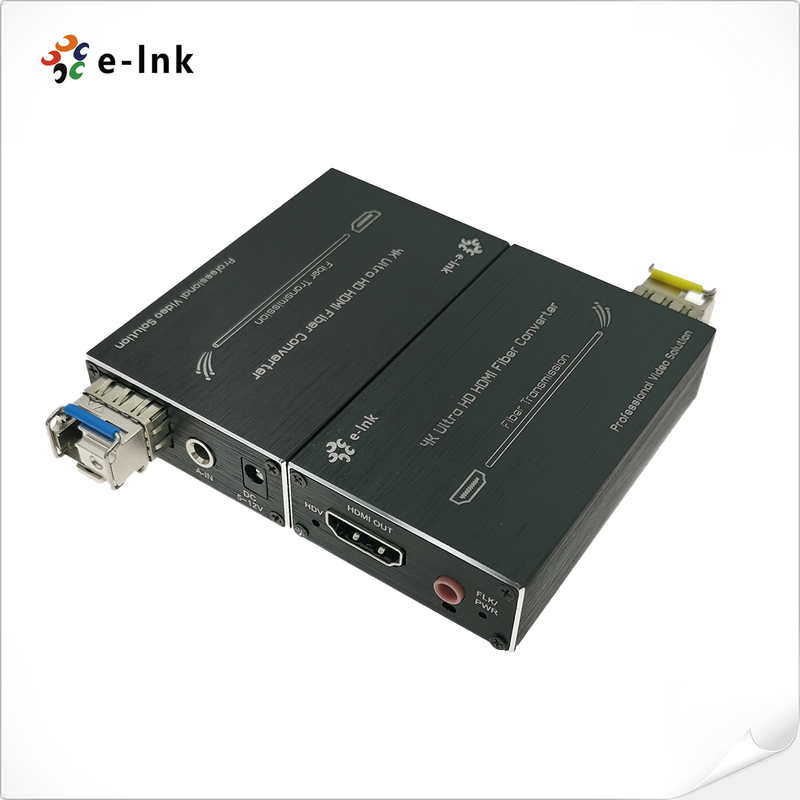

Micro Mini 4K HDMI Fiber Extender with External Audio

Type of Extender

Fiber Transmitter for HDMI signal over Optical Fiber Cable

Input Signals

HDMI

Connector

Female HDMI type A

Signal Support

HDMI 1.4a HDMI format standard and HDCP compliant

Video Support

1920x1200 / 1080p@60Hz, up to 4K*2K@30Hz

Audio Support

Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6.1, DTSHD, DTS-HD-HRA, DTS-HD Master, (PCM-2CH)

Chroma Subsampling

Color space, 420, 400

Dynamic EDID

Plug & Play, no need to learn

Audio Interface

3.5MM external stereo audio

Fiber Connector

SFP/LC

Bandwidth

10.3Gbps

Transmission Distance

300m (Over OM3 Fiber)

Up to 80km (Over Single-mode Fiber)

Operating Temperature

-10 to + 60°C

Storage Temperature

-20 to + 85°C

Humidity

5% to 90% RH (non-condensing)

MTBF

100,000 hours

Dimension (WxDxH)

2.87 x 1.73 x 0.69in (73x44x17mm)

Weight

60g / 0.13 lb

Power Supply

5~12V DC

Power dissipation

<5W

Safety Approvals

CE, FCC, Rohs

Model

Description

LNK-MHA4K-MM

Micro Mini HDMI Fiber Extender: 1-Ch HDMI Signal(4K*2K) + 1Ch Stereo Audio, OM3 Multi-mode Dual Fiber, 300 meters, LC, including 1 transmitter & 1 receiver, 5~12V DC Power Input

LNK- MHA4K-S20

Micro Mini HDMI Extender: 1-Ch HDMI Signal(4K*2K) + 1Ch Stereo Audio, Single-mode Single Fiber, 20km, LC, including 1 transmitter & 1 receiver, 5~12V DC Power Input

LNK- MHA4K-S40

Micro Mini HDMI Extender: 1-Ch HDMI Signal(4K*2K) + 1Ch Stereo Audio, Single-mode Single Fiber, 40km, LC, including 1 transmitter & 1 receiver, 5~12V DC Power Input

LNK- MHA4K-80

Micro Mini HDMI Extender: 1-Ch HDMI Signal(4K*2K) + 1Ch Stereo Audio, Single-mode Dual Fiber, 80km, LC, including 1 transmitter & 1 receiver, 5~12V DC Power Input

LNK- MHA4K-S80

Micro Mini HDMI Extender: 1-Ch HDMI Signal(4K*2K) + 1Ch Stereo Audio, Single-mode Single Fiber, 80km, LC, including 1 transmitter & 1 receiver, 5~12V DC Power Input
